Henri

Post subject: SED1531 ( S1D15300 )

Posted: Thu Jan 13, 2005 1:45

Joined: Sun May 05, 2002 22:05
Posts: 2063
Location: Lappeenranta, Finland

Driver for SED1531 controller which is also known as S1D15300.

http://www.skippari.net/lcd/alpha/plugi ... driver.dll

Works in parallel mode.

Tested with Topway LM6023B module and only supports 128x64 display now but custom size support should be easy include as the driver should already be ready for custom sizes, only the custom size option to configuration dialog needs to be added.

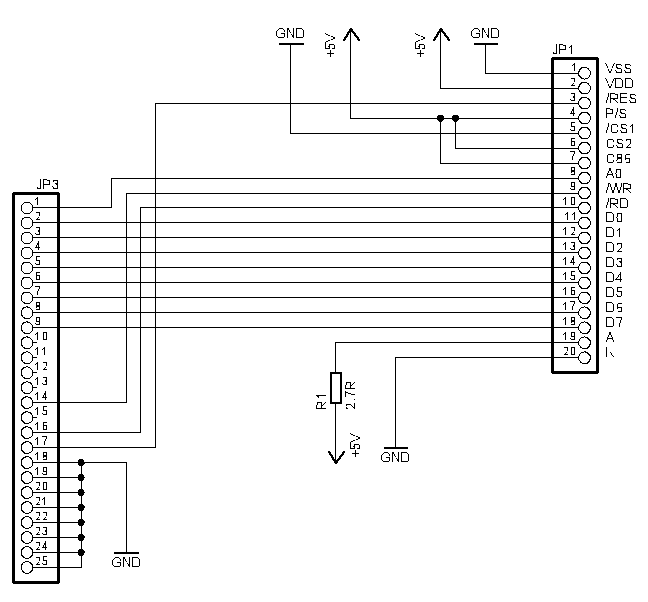

Wiring used was this:
http://www.skippari.net/lcd/sekalaista/ ... rallel.png

Last edited by Henri on Wed Jan 26, 2005 9:16, edited 1 time in total.

Top

ignatz

Post subject:

Posted: Thu Jan 13, 2005 8:30

Joined: Wed Nov 17, 2004 7:18
Posts: 19
Location: portugal

i'm going home to test it

thank you Henri!!!!

Best regards!
