hi

"""sorry for my bad english!!!

i'm looking for a schematic for http://www.lcd-module.de/deu/pdf/grafik/w160-7.pdf to connect it to the LPT port an use LCDinfo.

thanks in advance!

wowbagger

_________________
blub

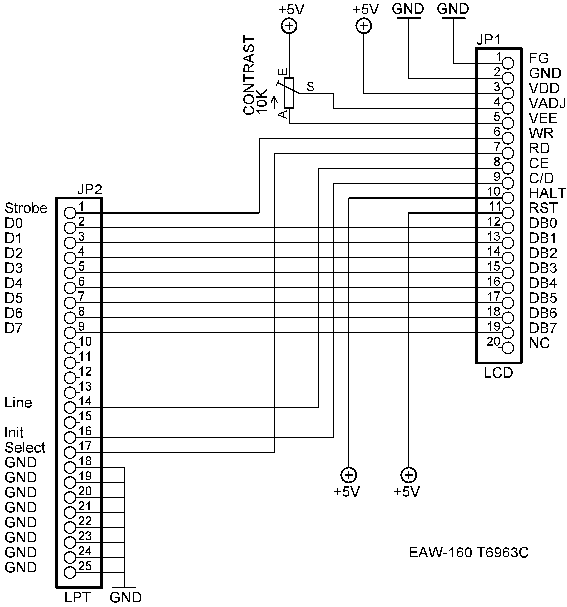

Schematic for that display will be here when I have some time to draw it.

Sorry, I draw this already thursday evening but forgot to post here.



I'm not sure how you can change the font select and column select but as they are shown in the last page of the datasheet this should be possible. At least they are not in the 20 pin header.

As I haven't tested this personally I can't promise it will work or doesn't cause any other harm but I think it should work.

hi

thank you for the schematik, but i've founded out, that this lcd coasts about 200€... thats me to expensive... sorry for the work that i've made you!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

_________________
blub

can i use this schematik with all t6963 160x128 lcds?

_________________
blub

No you can't. This display is different than most other I've seen. This doesn't have the FS and MD pins in the header and I don't remember seen the HALT signal in any other T6963C lcd.

But the basic principle is the same with all T6963C displays no matter what size they are.

ok

but if i know which connector on the lcdpcb have whitch signal, i can use this schematik? because i've buyed an lcd at ebay...

_________________
blub

You can use it, but you may not find the HALT pin in the new display and the new display may have FS and MD pins + some other differences.

If you know the pinout or where to get datasheet you could post it here and I could check what the difference is.
