computergeekguy
 Post subject:
PostPosted: Fri Jan 31, 2003 9:16
Offline

Joined: Sat Aug 24, 2002 1:28
Posts: 39
Location: CA, USA
well i don't know what that is about. anyway i sent henri some pictures of what i get with gifanimation, LCDinfo, and ks0108test. all are promising but not correct in any form of the word. i do not know what could be the cause of the problem. the only thing that is different from any other LCD is that mine is wired by solid copper wire to a connector to a 5~6ft paralell cable. i think that this could be the problem.

_________________
...and the geeks shall inherit the earth (Bob 5:5)
Top
 Profile

Henri
 Post subject:
PostPosted: Fri Jan 31, 2003 22:13
Offline

Joined: Sun May 05, 2002 22:05
Posts: 2063
Location: Lappeenranta, Finland
computergeekguy wrote:
Ok in gifanimation the screen would repetitively display "gifanimation1st.jpg" then a similar screen then "gifanimation2nd.jpg"

ks0108test would not display the same screen twice though all screens looked similar to "ks0108test.jpg"

LCDinfo was a bit more complicated. On the e-mail/time/date screen the LCD would go blank. On the Winamp screen the LCD would display

"LCDinfo.jpg" and on the system temp page the LCD would display a similar screen to winamp's.

I am using the latest versions of LCDinfo 0.3.1
Latest gifanimation
And the most recent ks0108test program.(it was the one that included the source code and ran in a DOS terminal).

Oh and BTW the parallel port settings made a HUGE difference on ECP.

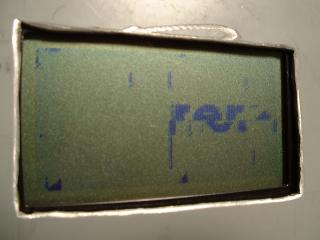

gifanimation1st:

gifanimation2nd:

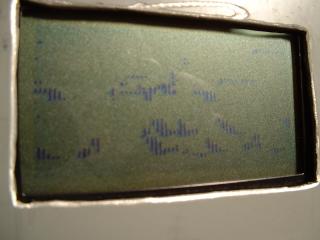

ks0108test:

LCDinfo:


All I can think is some wiring problems that cause too much noise/interference so the signals aren't reaching the lcd correctly. You could try with shorter wiring and maybe using flatcable as that's what I've used with all my displays and lengths over 2 meters haven't been any problem.
Top
 Profile

computergeekguy
 Post subject:
PostPosted: Sat Feb 01, 2003 1:22
Offline

Joined: Sat Aug 24, 2002 1:28
Posts: 39
Location: CA, USA
ok i thought i should have used different wires, now i guess i do. i have a parallel cable missing one end. i think that should work just fine now i have to do the soldering and stuff. i do not know when i will have more free time so ill let you guys know when i finish the re-wireing. well i guess that my worst fear is a reality, time to find that soldering iron!!! :o thanks again

_________________
...and the geeks shall inherit the earth (Bob 5:5)
Top
 Profile

Guest
 Post subject:
PostPosted: Mon Feb 10, 2003 14:29


Top


computergeekguy
 Post subject:
PostPosted: Thu Feb 13, 2003 8:00
Offline

Joined: Sat Aug 24, 2002 1:28
Posts: 39
Location: CA, USA
well i felt lazy and wrapped some of the power cables in tin foil and i saw a dramatic improvement. i cannot wait to completely re-wiring the thing!!!!

_________________
...and the geeks shall inherit the earth (Bob 5:5)
Top
 Profile

me
 Post subject:
PostPosted: Mon Jun 02, 2003 2:09
try picbasic.com - instead of assembler, use the BASIC language, same as BASIC stamp but with pic
Top


mehrdad2698
 Post subject: mehrdad
PostPosted: Sun Jun 08, 2003 7:42
Henri wrote:
This is a quick drawing I just made. Because it haven't been tested you should check that it's correct before using it (i may have done a mistake somewhere).

Top


Guest
 Post subject: Re: Crystalfontz LCD
PostPosted: Tue Jul 29, 2003 14:17
Henri wrote:
computergeekguy wrote:
i have a crystalfontz graphic LCD and was wondering if i could use this scematic drawing to hook it up. http://www.skippari.net/lcd/KS0108_HD61 ... A_ver2.pdf
i have a CFAG12864B-WGH-V. anything would help, thanks.


128x64 STN Positive, Transflective, Wide Temperature, White EL backlit LCD Module with Built-in Negative Voltage Generator
http://www.crystalfontz.com/products/12 ... 4BWGHV.pdf
http://www.crystalfontz.com/products/12864b/index.html

Yes, you can use it as a reference but you need to make some changes:

parallel pin - lcd pin

2 - 4 DB0
3 - 5 DB1
4 - 6 DB2
5 - 7 DB3
6 - 8 DB4
7 - 9 DB5
8 - 10 DB6
9 - 11 DB7

14 - 12 CS1
16 - 13 CS2
17 - 16 D/I
1 - 17 E

The display has the GROUND and +5V pins switched compared to the schematic. Also check the places of other pins like RESET and R/W. If you follow the names of the lcd pins in the schematic instead of pin numbers everything should be fine. This Crystalfontz display also doesn't have LED backlight so you need an inverter for the EL backlight.

I didn't use the 10k pull up resistors while wiring my display. If you don't use these resistors then you won't connect the lines to Vcc either. Just straight from lcd to lpt.

Let me know if you need any further information. If you're not sure about something it's better ask first. :)

Here are also newer versions of lcdinfo that should have fixed some bugs in the KS0108 code:
http://www.skippari.net/lcd/LCDInfo_0.3.1pre2.zip
http://www.skippari.net/lcd/LCDInfo_0.3.1pre2_nt.zip

Crystalfontz CFAG12864B-WGH-V pinout:

Displaytech 64128A pinout:
Top


Sara
 Post subject:
PostPosted: Tue Sep 09, 2003 6:23
Oddly enough, that actually gives me another idea. I have to check something first but I'll keep you all posted. Might be interesting for everyone.


-Sara
http://kineticscripts.com/b/

"Riiiight-Can you have those TPS reports in by the end of the day?" (Office Space)
Top


v2hja
 Post subject:
PostPosted: Fri Jan 14, 2005 15:29
Offline

Joined: Mon Jan 10, 2005 19:07
Posts: 8
Location: ESTONIA
http://www.hot.ee/mirek/lcd_video.AVI
this is my problem
http://www.crystalfontz.com/forum/showt ... #post13591

i am using EPP1.9
and several different wirings

http://www.zone.ee/artz/TEMP2/
http://www.zone.ee/artz/TEMP3/
Top
