Onko kellään mitään tietoa kyseisestä näytöstä.
Esim. kytkentää, datalehtistä, testi ohjelmaa ?


Top
 Profile

 Post subject:
PostPosted: Wed Jul 10, 2002 0:40
Offline

Joined: Sun May 05, 2002 22:05
Posts: 2063
Location: Lappeenranta, Finland
Täällä jotain: http://www.eio.com/public/lcd.1998/0306.html

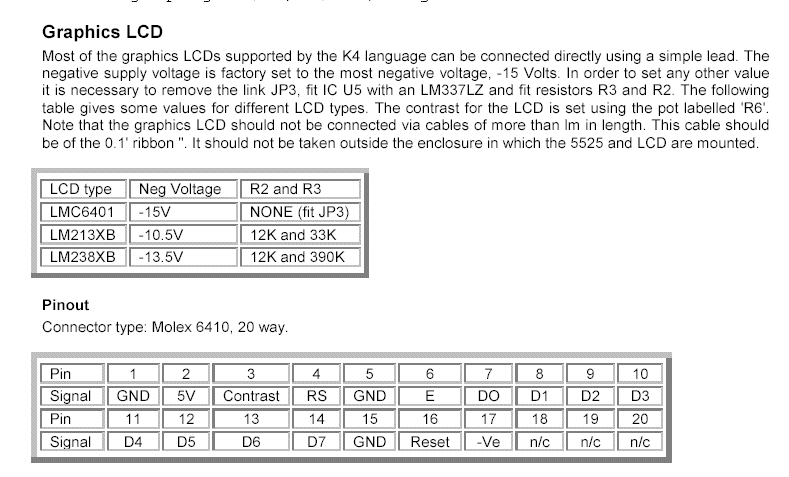

Näytön käyttämä negatiivinen jännite taitaa olla -13.5V. Tämä tieto löytyi seuraavasta pdf:stä http://www.microrobotics.co.uk/pdf/44231.pdf
Siinä on myös eräs pinout, mutta en tiedä käykö se suoraan tähän näyttöön, ainakin siinä on hitachin näyttöjä tämä mukaan lukien joille se on kai tarkoitettu.

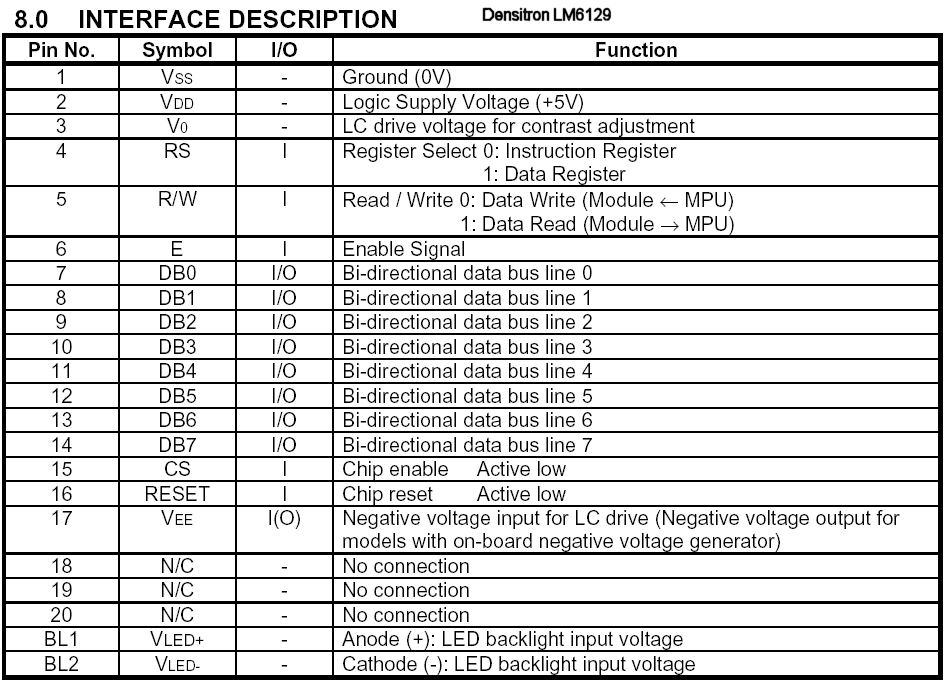

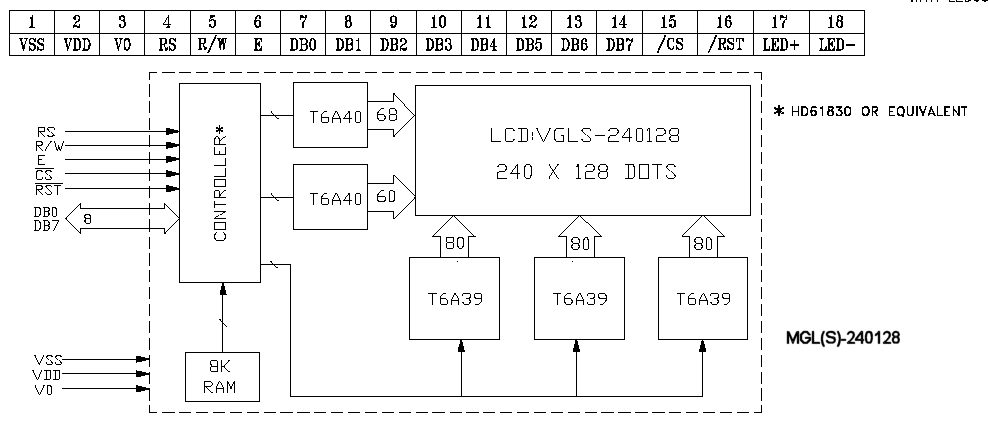

Netistä näyttää löytyvän myös muita samaan piiriin perustuvia näyttöjä. Onkohan näiden datoissa esitetty pinout lähellä oikeaa ? Löysin myös c-kielistä koodia HD61830:n ohjaukseen.


Top
 Profile

 Post subject:
PostPosted: Mon Jul 22, 2002 17:08
Offline

Joined: Sun May 05, 2002 22:05
Posts: 2063
Location: Lappeenranta, Finland



Näiden perusteella voisi varmaan jotain kytkentää jo alkaa yrittää väsäämään.


Top
 Profile

 Post subject:
PostPosted: Tue Jul 23, 2002 18:51
Offline

Joined: Sun May 05, 2002 22:05
Posts: 2063
Location: Lappeenranta, Finland

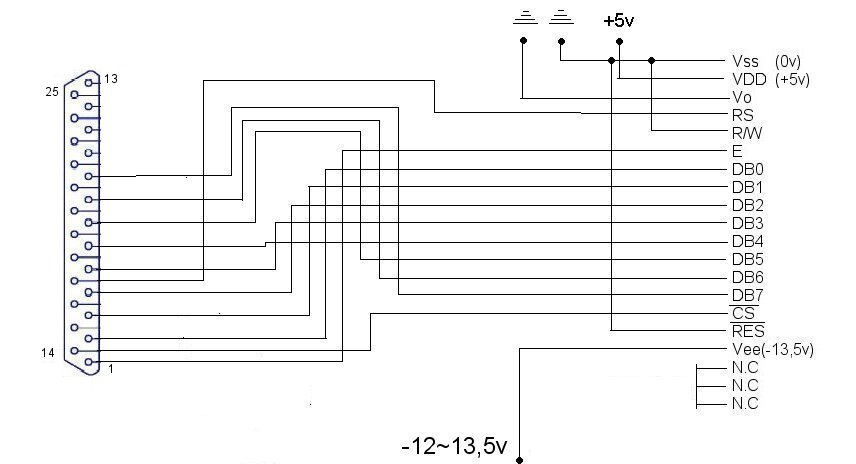

Tässä topicin aloittajan tekemä kaavio:
