Szabi
 Post subject: Motorola C236-C250
PostPosted: Sun Dec 09, 2007 19:24
Offline

Joined: Fri Oct 13, 2006 16:00
Posts: 9
Hi!
Does anybody know the pinouts and controller chip type used on the Motorola C236-C250 (maybe C350) colour LCD displays? :roll: (10 pin metal contacts used, so easily adaptable)
I would highly appreciate if someone could give some information, or at least a site.
Thx!

Top
 Profile

Szabi
 Post subject:
PostPosted: Wed Dec 26, 2007 12:09
Offline

Joined: Fri Oct 13, 2006 16:00
Posts: 9
Thanks to Berty's right guess, ( http://sandiding.tripod.com/Bertys.html ) the controller chip is SSD1770.
I have mounted a small PCB on the back side of the display, and connected to the LPT port.

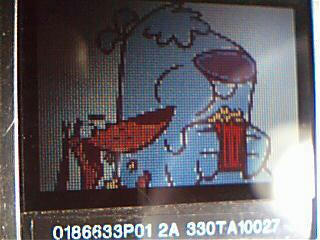

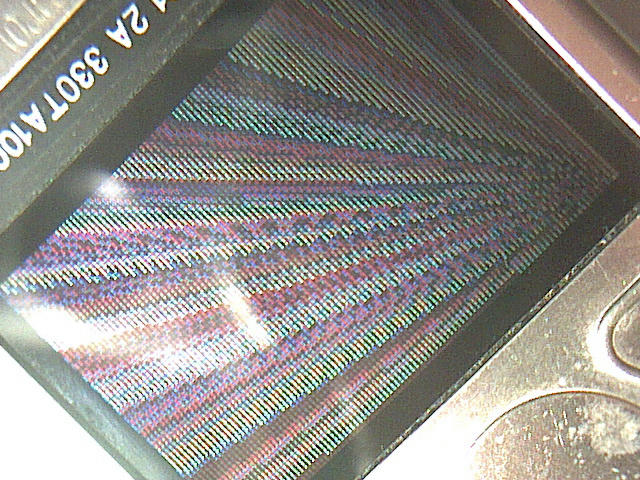

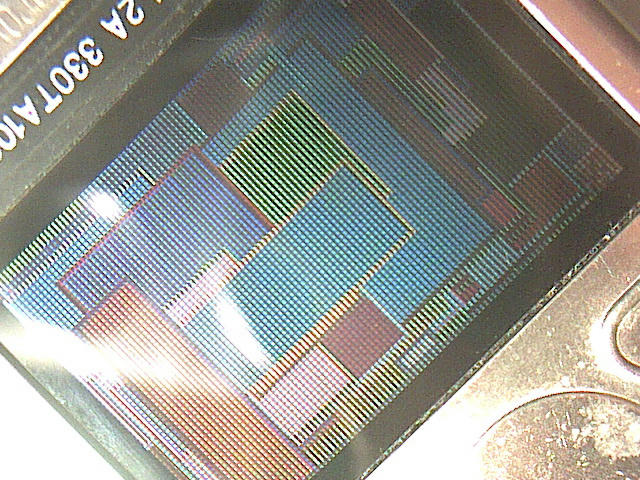

Some pictures: http://www.mediafire.com/?dwiwn0wzwdv
Scroll video: http://www.mediafire.com/download.php?dwnmtg3y4gx

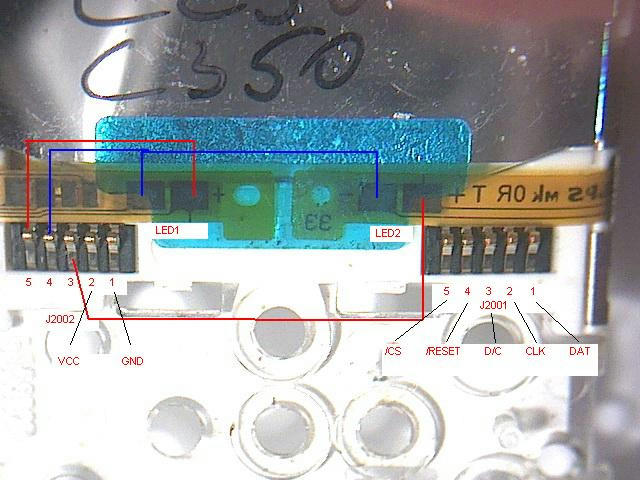

wiring: Image
Top
 Profile

Szabi
 Post subject:
PostPosted: Fri Jun 13, 2008 22:21
Offline

Joined: Fri Oct 13, 2006 16:00
Posts: 9
I made an LCDHype driver for Motorola C236, C250, C350 LCD's.
It can be found here: http://lcdhype.de/index.php?showtopic=4760&hl=

Source code and hardware connections (schematics) also included.
