 Post subject:
PostPosted: Sat Feb 19, 2005 23:53
Offline

Joined: Sat Feb 12, 2005 6:52
Posts: 17
Location: Portland, OR
OK, now a question...

For RESET, is it normally +5 and went pushed it is shorted to ground? Or, is it normally ground and when pushed it is shorted to +5? And is a 10mf Cap alright, or must it be 0.1 mf?

I'm going to cross post this also. Hope that is alright.

Schlepp


Top
 Profile

 Post subject:
PostPosted: Tue Feb 22, 2005 16:45
Offline
User avatar

Joined: Sat Apr 17, 2004 17:42
Posts: 467
Location: The Netherlands
Common used values are 100nf=0.1uF
mF=milli Farad
uF=micro Farad
So if you mean to use a 10mF i'm not sure if that'd be good.

_________________
My Plexeon-Insane LCD!-Or this one!-LCDinfo-LCDStudio


Top
 Profile

 Post subject:
PostPosted: Thu Mar 03, 2005 7:29
Offline

Joined: Sat Feb 12, 2005 6:52
Posts: 17
Location: Portland, OR
Ok, I'm open for answers; as I have some questions again.
SED133x is an 8bit controller, so it will be considered as a non-buffered controller. Correct?
The data sheet for the 600.200sk http://www.planar.com/Products/docs/IBU/current_manual/el/EL640.200-SK_020_0348_00A.pdf makes note that in non-buffered mode, input signals VID0 through VID3 and VIDL0 through VIDL3 contain the video data for the screen. That is 8 data lines, where do I pull VIDL0 through VIDL3 from? Or do I have this misread? :?

I've been making some encouraging steps with this controller card and display, but the hurdles are always there.

And for the good news... I just started a new job this week and have been really busy. After 20 years in the restuarant business(management/owner), I have finally gotten a dream job. I am now working for a top restuarant POS system company; configuring and installing systems. Lot's of nationwide travel, free computer gear, heavy discounts from suppliers, I will be working LESS than 70hrs/week, and NO MORE FREAKIN' STRESS. Well maybe a little. :wink:


Schlepp


Top
 Profile

 Post subject:
PostPosted: Mon Mar 07, 2005 23:30
Offline

Joined: Sun May 05, 2002 22:05
Posts: 2063
Location: Lappeenranta, Finland
SED133x is 4 bit single scan controller. So it would use the buffered mode with 640.200-SK.


Top
 Profile

 Post subject:
PostPosted: Tue Mar 08, 2005 6:20
Offline

Joined: Sat Feb 12, 2005 6:52
Posts: 17
Location: Portland, OR
Thank you, Herni.

So, I did misread that or misunderstood that.
I'm having some issues. Mainly, because of that "little" error on my part. But, maybe because the 640.200-SK has an Xilinx on board, and it has to be responsible for some of the controlling commands.

If nothing else, if I find that I can't get this run properly with that controller card; I will have a really cool 12volt rectanglular yellow nightlight. :wink:

Thanks again
Schlepp


Top
 Profile

 Post subject:
PostPosted: Wed Mar 09, 2005 16:08
Offline
User avatar

Joined: Sat Apr 17, 2004 17:42
Posts: 467
Location: The Netherlands
Don't give up! Should be relatively easy to hook it up to the MPI board. Only the results might be dissapointing or not....

_________________
My Plexeon-Insane LCD!-Or this one!-LCDinfo-LCDStudio


Top
 Profile

 Post subject:
PostPosted: Fri Apr 01, 2005 4:56
Offline
User avatar

Joined: Thu Dec 09, 2004 16:01
Posts: 218
Location: NH, USA
Schlepp...

I've gotten a couple of those off of ebay in the past in hopes of being able to utilize them myself (but I had to pay $9.99 plus shipping for each one...not fair :cry: ) Think I'll have to move closer to Washington just to get in on the Planar products!! Don't worry Coorz and Henri, I'd send you stuff still :lol:
Anyways, I think I encountered much of the same frustration as you did trying to figure out where all those pins connected to, so I finaly just emailed Planar with the part number, and they sent a pinout for the side of the board that has the 32pin smd connector on it. It was a start anyway. Trying to figure out where the SED outputs go though the FPGA (I too went through the data sheet for that Xilinx chip) is impossible. There is no telling how they programmed the SED's outputs to the I/O's on the FPGA. So, the only thing I could even possibly remotely consider is trying to find a generated signal between the output side of the SED and the input to the FPGA, with an o'scope maybe, and try to find the same signal again on the output side of the FPGA. Don't know if that's possible or not...may create even more of a headache than anything else. Anyway, if you need/want the pinout for the other side, let me know. I will see if I can dig it up. I may try and email Planar again and see if they have the data for the other side....you never know :D


Top
 Profile

 Post subject:
PostPosted: Wed Aug 03, 2005 1:25
Offline
User avatar

Joined: Thu Dec 09, 2004 16:01
Posts: 218
Location: NH, USA
Schlepp,

Did you ever make any progress with this? I know it's been a while, but if you need help with these still, I think I can shed some more light on them for you :D


Top
 Profile

PostPosted: Tue Mar 17, 2009 19:32
Offline

Joined: Tue Mar 17, 2009 19:23
Posts: 1
Hi Henri,

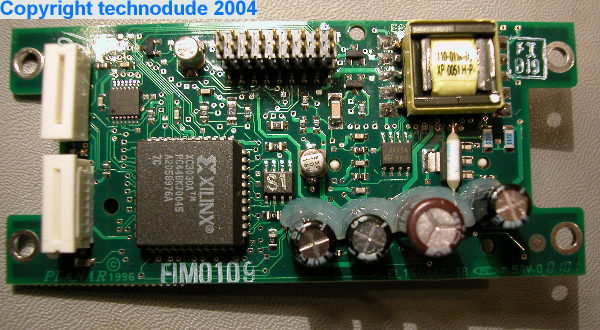

have you got more information of the part you posted the pictures?
I got two of these devices in a complete form. The controller, you posted a picture from, is a EL display that is used in SUN storage servers. The controller is just one part and decodes the touch interface of the display. It also generates the high voltage needed for the el display. The part that you did not post pictures of, is the display itslef. It is a display named 944-0064-00 and has a touchscreen interface mounted. The touch screen is a 5*3 matrix.
You can find a complete picture of the device here http://www.recycledgoods.com/item/25467.aspx .
I could not find enough information on the internet. The device seems to be too old. I like to connect the module to a pc somehow and use it. Therefore I need the pinout of the 32pin connector.
Does you, or anybody else, know something about it?

Henri wrote:
Is the interface anything like this ?



I have seen these but haven't yet been able to find good enough use for them to justify getting one. Of course it can be usable even if you don't have just that specific display it's made for if you trace the signals and find better use for them.
As there is the Xilinx FPGA on the board I don't expect all the signals to go straight to the display but instead the FPGA has some processing job there probably related to the display scanning. But I haven't looked into it more.

You didn't mention what display you'd like to interface with. It all depends of the display how to connect things and if that's even possible with the stuff you have now.


Top
 Profile

PostPosted: Wed Mar 18, 2009 19:00
Offline

Joined: Sun May 05, 2002 22:05
Posts: 2063
Location: Lappeenranta, Finland
frickelkram wrote:
Hi Henri,

have you got more information of the part you posted the pictures?

No, I don't have any extra information on these as I don't have the hardware so haven't really had a reason to look more into it.

I didn't know that the board was part of that display. It's good to have the additional information that you provided.

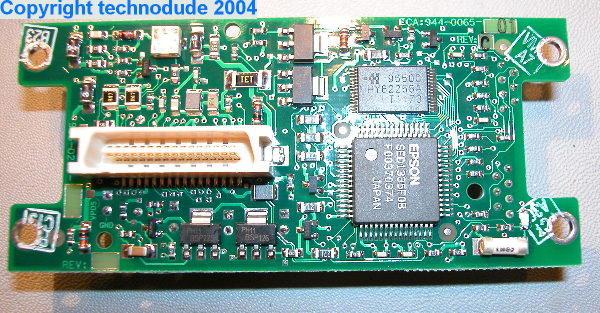

But earlier in the topic you can see One~Zero mentioning that he had the pinout for the 32 pin SMD connector. As the controller board has the SED1335 controller on it the interface should be the common 8 bit SED1335 parallel interface in the connector. You just need the pinout and if One~Zero still has it would be nice to have the pinout also added to this thread for future reference.

In fact I'll put the information from your link to here for anyone else looking for this later.

Code:
Product ID:    25467
Product Name:    LCD Adapter
Mfg:    Sun
Mfg Part #:    370-2311-02
Qty Available:    6
Price Each:    $67.50
Condition:    Used
Sun 370-2311-02 Touch Screen LCD Panel


And pictures too as I think it's quite likely they will disappear from the link your posted:




And the part numbers from the labels to make this more search engine friendly:
Code:
PART#: 996-0277-01
EL160.80.38-SM1
RED: D

SUN PART NUMBER
370-2311-02 REV:50

PLANAR AMERICA
MADE IN USA


Top
 Profile

 Post subject:
PostPosted: Tue Mar 31, 2009 11:54
Offline
User avatar

Joined: Thu Dec 09, 2004 16:01
Posts: 218
Location: NH, USA
Sorry it took so long...had to find my notes :D

LEDG1_L 1
SELFTEST 3
A1 5
GND 7
/RESET 9
D7 11
D6 13
D5 15
D4 17
D3 19
D2 21
D1 23
D0 25
VL(+5V) 27
VH(+12V) 29
GND 31

2 LEDY_L
4 LEDG2_L
6 GND
8 A0
10 GND
12 /WR
14 GND
16 /RD
18 GND
20 GND
22 NC
24 GND
26 /INT
28 GND
30 VH(+12V)
32 GND

Hope this helps a bit
